PONX PC POS

PONX PC POS

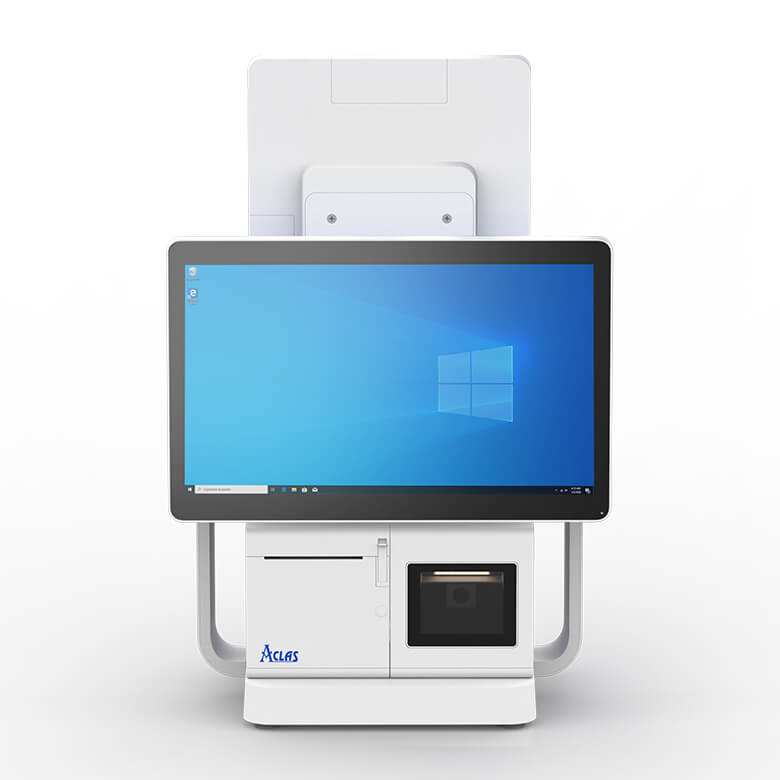

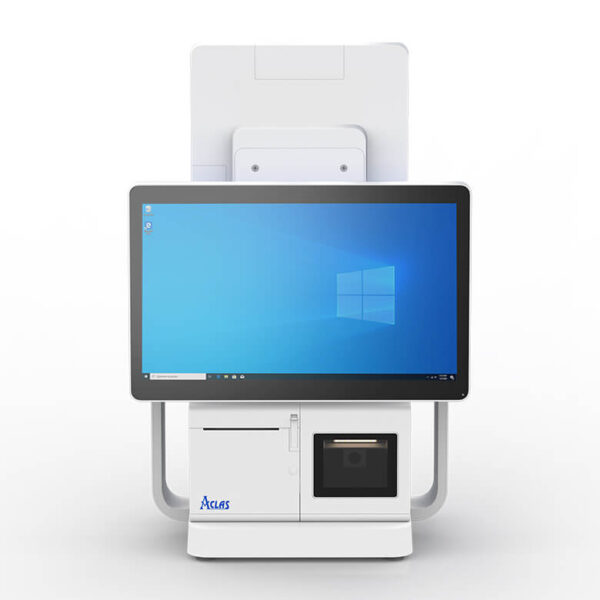

ALL-IN-ONE PC POS
Where Power Meets Simplicity—One Device, Unlimited Transactions, Clutter-free.

  • Stylish and unique Quick-Plug Design, it achieves harmony in structure, aesthetics and function, delivering an easy installation, elegant look, and quick maintenance for the machine.
  • Both main and secondary screens offer kinds of configurations in portrait or landscape modes, to meet various demands of diverse and complex business models.
  • Unique modular design allows the thermal Printer and 2D Scanner detachable and free to position in the left, center or right of the base.
  • With RGB Color-changing Light Strip, customer can define the light color to indicate different working status of the machine. The light blends in harmoniously with store surroundings and creates a cozy atmosphere for the store.
Categories: , Tag:

Innovative Features

※All-in-one design integrates the main display, sub-display, printing module, scanning module, and magnetic card module, etc. into one machine, catering to diverse and complex business models.
※The device features a modular quick-plug design, with the display supporting portrait/landscape switching. The printing and scanning modules allow front/back installation and free positioning in left/center/right positions of the base for flexible combinations, effortlessly adapting to both attended and unattended business scenarios.
※The printing module is compatible with two paper widths: 58mm and 80mm. Patent for Clearing Paper Jams by Pulling Three Times (Chinese Utility Model Patent, patent No.: ZL202022064774.4): Quickly clear paper jams caused by misaligned paper loading or curled paper ends. Simply pull the cover lever more than 3 times to clear jams, which can prevent business suspension due to paper jams.
※Full-color breathing light strip design with customizable colors and effects. Beyond traditional text and voice prompts, it also features a “Light Language” for information delivery.
※ Equipped with a high-performance and low-power CPU, it supports optional Windows 10/11 or Android 13 systems, catering to diverse application requirements.

Specification

Model PON
Host Configuration Mainboard Miniaturized industrial control board
Processor Intel® Celeron® Processor J6412 2.0GHz
RAM(internal storage) Standard:8GB
Storage (solid state disk) Optional:128/256GB SSD,M.2
Power supply 13.8V 4.2A
Built-in Speaker 5W
Display Touch Main Display
(built-in mainboard)		 Standard 15.6″ touch screen, ratio 16:9
physicalresolution 1920*1080
Touch Sub Display
(without mainboard)		 Optional 15.6″ touch screen, ratio 16:9
physicalresolution 1920*1080
Scanner Module Product scanner + payment scanner Optional, support 1D/2D code recognition
Printer Module Thermal Printer Optional, 58/80mm printer with cutter
Wireless module WIFI IEEE 802.11a/b/g/n/ac/ax
BT BT 5.3
Port Serial port 1×RJ11*; 1×RJ12
Cash drawer  1×RJ12
Ethernet port 1 RJ45
SD Card socket 1 MicroSD card socket
Options Serial port RJ11 serial port *1, RJ12 serial port *1
Cash Drawer Cash Drawer port RJ12*1
USB USB3.0 *1, USB2.0 *5
Ethernet port 1000M LAN *1
Cash Drawer control DC 24V 1.0A 6 wire RJ12
Status indicator light Red, green and blue primary colors
(can customize the combination of colors and effects)
Operating System Windows10 ENT 2021 LTSC
